Imagine a pipe bursts behind the walls of a 50-story skyscraper in Manhattan. If the maintenance crew doesn't have the original blueprints, they have to tear down every wall just to find the leak. Your IT infrastructure is that skyscraper. Without proper records, a single server failure can turn into a week-long outage. The importance of network documentation is not just about organization—it is about survival in a 24/7 digital economy.
"In my 15 years of conducting IT auditing for Fortune 500 companies, the #1 cause of failed security audits is poor documentation. If you can't see it, you can't secure it. A network topology map is the first line of defense against both human error and sophisticated cyber attacks."
1. The Foundation: Building a Comprehensive Network Inventory
Before you can draw a single line on a diagram, you must know exactly what is in your server room. A network inventory is a forensic list of every piece of hardware and software running on your grid.
Hardware Assets
This includes serial numbers, MAC addresses, purchase dates, and physical locations of routers, switches, and firewalls.
IP Address Schema
A map of every internal IP address assigned via DHCP or static lease to prevent IP conflicts and routing loops.
Pro Tip: Is your inventory leaking data? Use our MAC Vendor ID Tool to verify the manufacturer of every hardware asset in your rack.

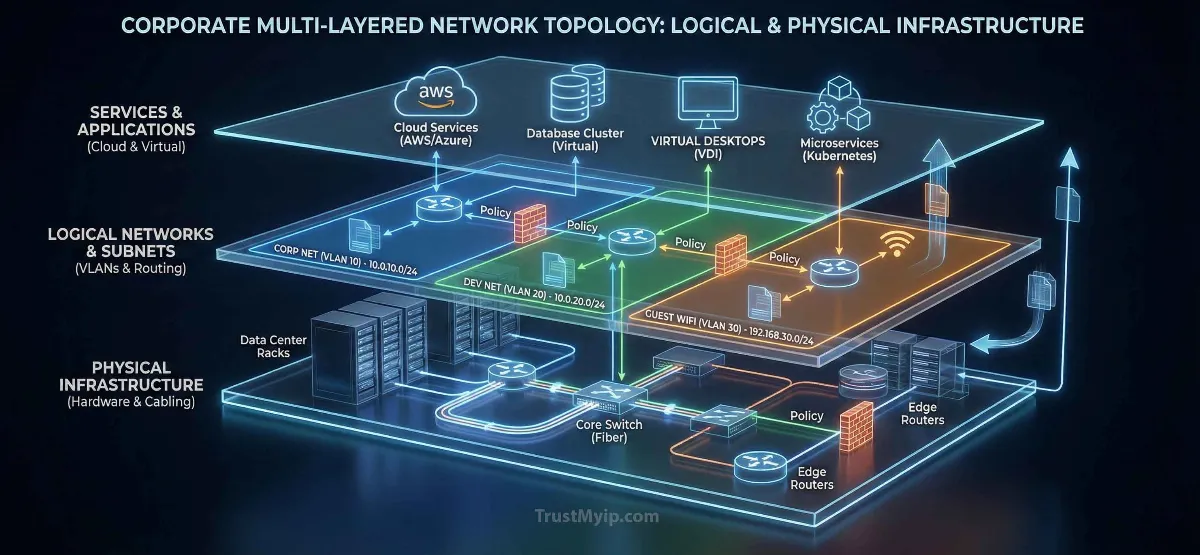

2. Visual Documentation: Logical vs. Physical Diagrams
Understanding best practices for maintaining network topology maps requires knowing the difference between how data flows and where the wires actually go. Most admins make the mistake of only drawing one.
Physical Diagrams
Focuses on rack diagrams, floor plans, and actual cabling. It tells you exactly which port on Switch A connects to the wall jack in Office B.
Logical Diagrams
Shows the "brain" of the network. It tracks VLANs, IP subnets, routing protocols, and trust boundaries like DMZs and Intranets.
3. Benefits of Network Documentation for Disaster Recovery
When a ransomware attack hits or a natural disaster takes out your primary data center, panic is the enemy. Disaster recovery plans are useless without up-to-date documentation.
"During a crisis, you shouldn't be guessing which Anycast Routing node is primary or where your configuration backups are stored. Your documentation should provide a step-by-step 'Restoration Roadmap' that allows a new engineer to rebuild the entire network from scratch."
4. The Role of Network Documentation in IT Audits
In the USA, regulatory requirements like HIPAA/PCI-DSS mandate that companies maintain strict control over how data moves. If you are audited and cannot show a clear security policy or a map of your Extranet, you face massive fines.
According to the NIST Cybersecurity Framework, "Identify" is the very first step. You cannot identify risks without deep-dive documentation of your authorized users and network access control systems.
5. What should be included in a Network Documentation Checklist?
Use this forensic table to audit your current documentation status for 2026 standards.
| Documentation Component | Technical Detail Required | Audit Value |
|---|---|---|
| IP Schema | Subnet masks, Gateway IPs, DNS servers. | Prevents IP Conflicts |
| Cabling Map | Fiber vs Copper, Port tagging, Rack U-space. | Speeds up Physical Fixes |
| Security SOPs | Firewall rules, VPN tunnels, Admin keys. | Regulatory Compliance |
| Change Management | Date of change, Admin name, Reason for update. | Forensic Accountability |
6. How Network Documentation Speeds up Troubleshooting
When a branch office in Chicago loses connectivity, a logical diagram allows you to trace the path instantly.
-
01
Eliminate Guesswork
Instead of checking every cable, you use your topology map to identify the exact Network Bridge or switch that is malfunctioning.
-
02
Vendor Collaboration
If you need to call Comcast or AT&T, having your circuit IDs and hardware models ready reduces your "Mean Time to Repair" (MTTR) by up to 70%.
7. Common Network Documentation Mistakes to Avoid
Don't let your documentation become a "tombstone" (something that is only looked at when things die). Avoid these USA industry pitfalls:
- Using Static Files: A PDF or printed Visio diagram is outdated the moment you move one cable. Use automated documentation tools that sync with your hardware in real-time.
- No Configuration Backups: Knowing *where* the router is doesn't help if you don't have a record of *how* it was configured. Store encrypted configuration backups off-site.
- Restricting Access Too Heavily: If only the IT Manager has the password to the documentation vault, and he is on vacation when the network crashes, the documentation is useless.
Audit FAQ
How often should I update my network diagrams?
Change management protocols recommend updating diagrams immediately after any hardware move, add, or change. At a minimum, perform a full network inventory audit quarterly.
What is a Rack Diagram?
It is a visual 2D scale representation of your server rack. It helps you track space availability, power requirements, and cooling needs for your physical hardware assets.
Is manual documentation still relevant in 2026?
While automated documentation tools do the heavy lifting, human-written Standard Operating Procedures (SOPs) and "Reason for Change" logs are still vital for understanding the intent behind network changes.
Conclusion: The Map is the Territory
The importance of network documentation cannot be overstated. It is the bridge between operational chaos and enterprise-grade reliability. By maintaining accurate topology maps, conducting regular IT auditing, and strictly following change management SOPs, you turn your network into a transparent, secure, and resilient asset. In 2026, as compliance & security standards become even more rigorous, your documentation isn't just a record—it's your most valuable tool.
